DE10-Nano

Currently, this very popular FPGA board is required as the base unit for the MiSTer system.  Numerous daughter boards can be added to run most of the available MiSTer cores.

Purchase a DE10-Nano from Digi-Key Now

The DE10-Nano Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Nano development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications.

The DE10-Nano Development Kit contains all the tools needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

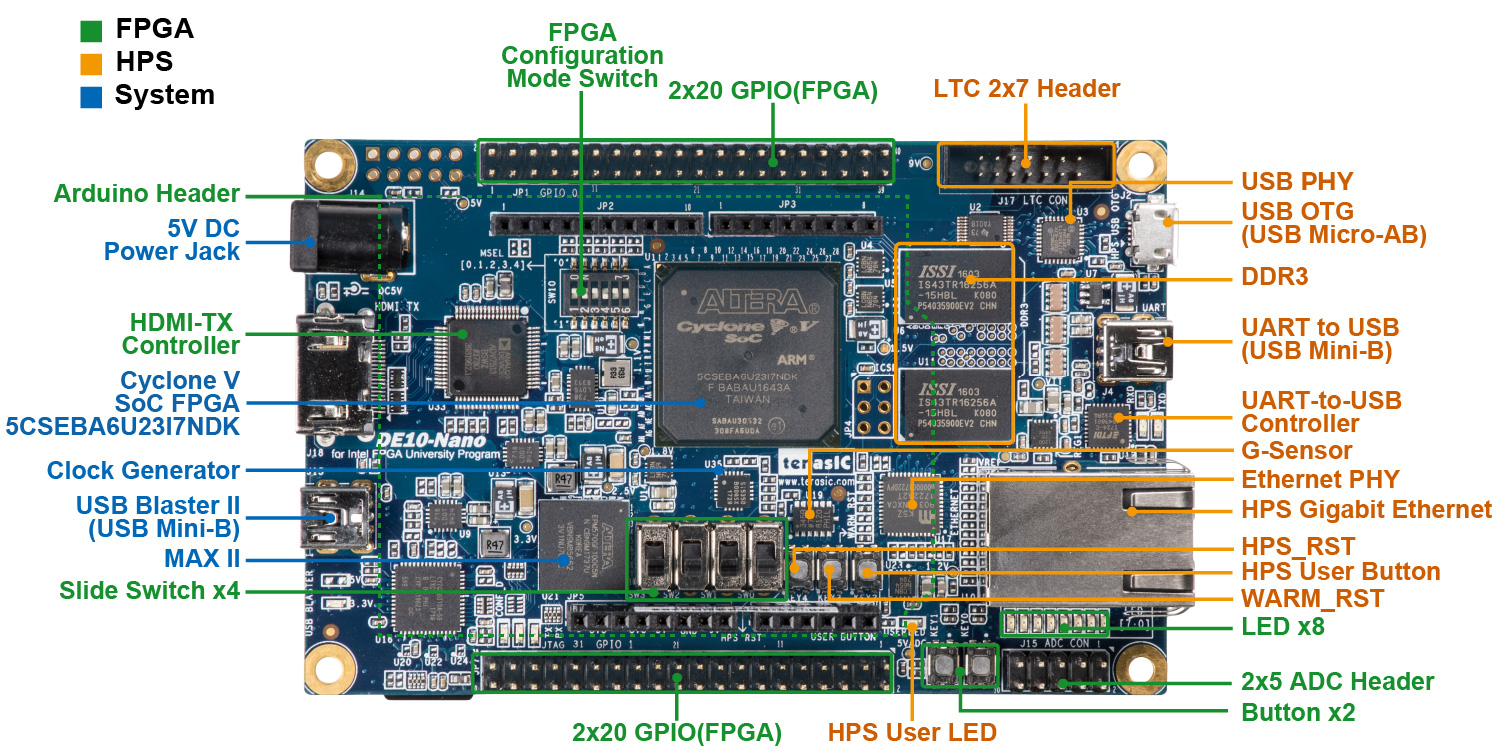

The following hardware is provided on the board:

FPGA Device

  • Intel Cyclone® V SE 5CSEBA6U23I7NDK device (110K LEs)
  • Serial configuration device – EPCS64 (revision B2 or later)
  • USB-Blaster II onboard for programming; JTAG Mode
  • HDMI TX, compatible with DVI 1.0 and HDCP v1.4
  • 2 push-buttons
  • 4 slide switches
  • 8 green user LEDs
  • Three 50MHz clock sources from the clock generator
  • Two 40-pin expansion headers
  • One Arduino expansion header (Uno R3 compatibility), can be connected with Arduino shields
  • One 10-pin Analog input expansion header (shared with Arduino Analog input)
  • A/D converter, 4-pin SPI interface with FPGA

* If the specification of memory device in Quick Start Guide and official website is discordant, refer to DE10-Nano website as the sole stardard.

HPS (Hard Processor System)

  • 800MHz Dual-core ARM Cortex-A9 processor
  • 1GB DDR3 SDRAM (32-bit data bus)
  • 1 Gigabit Ethernet PHY with RJ45 connector
  • USB OTG Port, USB Micro-AB connector
  • Micro SD card socket
  • Accelerometer (I2C interface + interrupt)
  • UART to USB, USB Mini-B connector
  • Warm reset button and cold reset button
  • One user button and one user LED
  • LTC 2×7 expansion header

Block Diagram of the DE10-Nano Board



  • Size:68.6x107mm

DE10-Nano Board Mechanical Layout



Board Feature x-axis (mm) y-axis (mm)
5V DC 2.79 53.47
HDMI 0.42 36.46
USB Blaster II 0.83 18.86
2×20 GPIO 20.05 61.34
2×20 GPIO 20.05 0.89
LTC 92.16 63.09
USB OTG 101.96 53.98
UART to USB 99.49 39.56
Ethernet 93.08 16.75
2×5 ADC Header 95.01 1.14
Arduino* Header 21.45 55.25
Arduino* Header 48.37 55.25
Arduino* Header 30.59 6.99
Arduino* Header 53.45 6.99
Arduino* Header 68.69 34.93































Connectivity

  • Connect Arduino




  • Connect LTC2607 (AD/DA Daugher Card)

Documents

Title Version Size(KB) Date Added Download
DE10-Nano User Manual (rev. B2/C Hardware) 2.1 7535 2018-11-15
How to distinguish the board revision and what’s differents. (rev. A/B/B2/C Hardware) 139 2018-04-02
DE10-Nano User Manual (rev. A/B Hardware) 1.8 8953 2018-02-01
Quick Start Guide(rev. A/B Hardware) 10727 2017-11-02
Quick Start Guide(rev. B2/C Hardware) 1574 2017-11-01
DE10-Nano Product Brief 2851 2017-08-05
Getting Started Guide 3417 2017-08-04
My First FPGA 3812 2017-08-01
My First HPS 1234 2017-07-31
DE10-Nano Control Panel 18361 2017-07-30
DE10-Nano OpenCV 2291 2017-07-29
Bluetooth SPP 1948 2017-07-28
DE10-Nano Schematic 1421 2017-07-27

CD-ROM

Title Version Size(KB) Date Added Download
DE10-Nano CD-ROM (rev. C Hardware) 1.3.4 2019-01-09
DE10-Nano CD-ROM (rev. A/B Hardware) 1.2.4 2018-02-01
DE10-Nano CD-ROM (rev. B2 Hardware) 1.2.5 2018-02-01
Network Socket Example Design 1.0.0 2017-10-30
Quartus Download 16.0 2016-12-22

Daughtger Card Demonstrations

Title Version Size(KB) Date Added Download
D8M 2018-01-26
RFS 1.0.0 2017-06-22
SMK 2017-02-24
Arduino Shield 2017-02-23
LT24 2017-02-23
MTL2 2017-02-23

Linux BSP (Board Support Package): MicroSD Card Image

Title Version Size(KB) Date Added Download
Linux Console (kernel 4.5) 1.3 2018-03-15
Linux Xfce Desktop (kernel 4.1.33-ltsi-altera) 1.0 2017-04-11
Linux LXDE Desktop (kernel 4.5) 1.1 2017-04-10

BSP(Board Support Package) for Intel FPGA SDK OpenCL 16.1

Title Version Size(KB) Date Added Download
DE10-Nano OpenCL BSP (.zip) 1.0 2017-05-05
DE10-Nano OpenCL BSP (.tar.gz) 1.0 2017-05-05
DE10-Nano OpenCL User Manual 1.0 2171 2017-05-04

BSP(Board Support Package) for Intel FPGA SDK OpenCL 18.1

Title Version Size(KB) Date Added Download
DE10-Nano OpenCL User Manual 2.0 2409 2019-01-03
DE10-Nano OpenCL BSP (.tar.gz) 1.0 2019-01-02
DE10-Nano OpenCL BSP (.zip) 1.0 2019-01-02

3D-Printer-Case

Title Version Size(KB) Date Added Download
DE10_Nano_Case 117 2017-05-05
